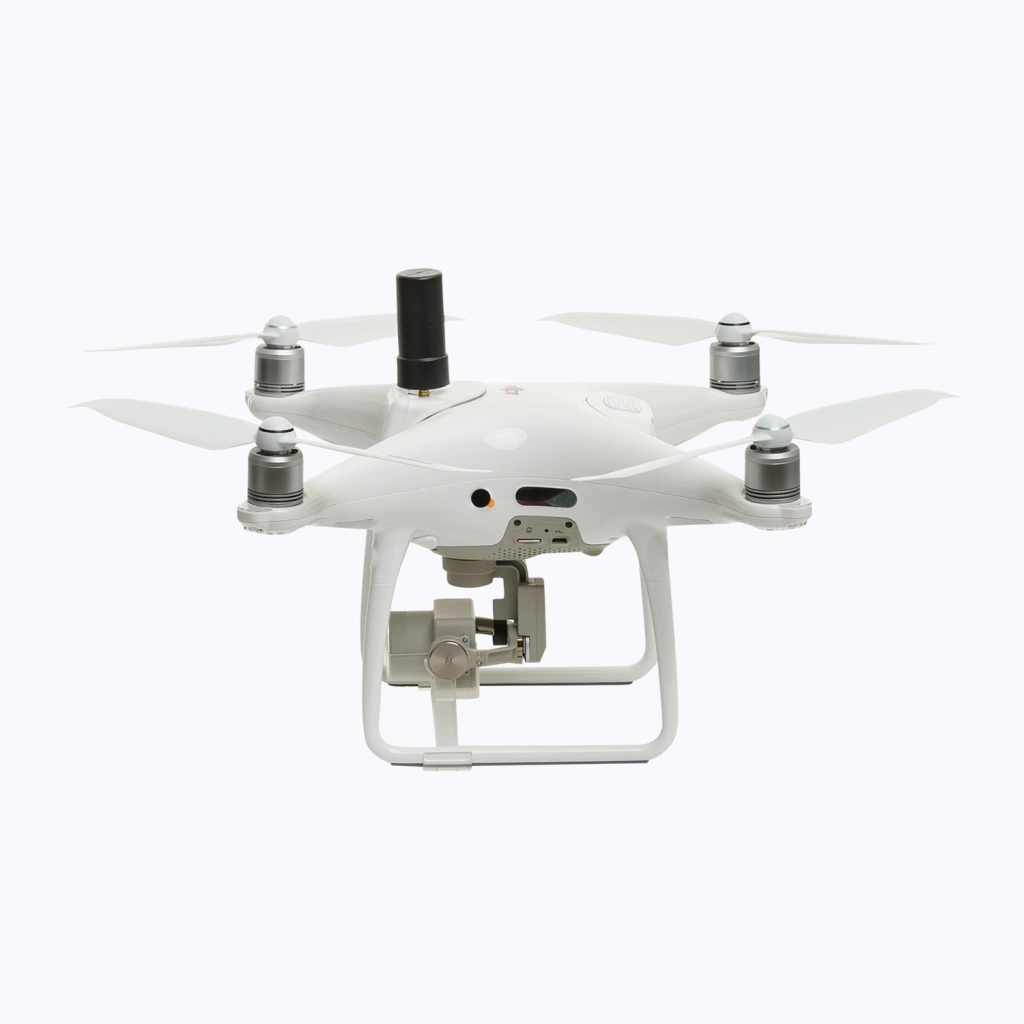

TOPODRONE PPK GNSS module for DJI Phantom 4 Pro/Pro v2.0

Hit

Available

Specifications

Country of origin : Switzerland

Year of release : 2019

Warranty : 12 months

GNSS channels number : 1408

Update Rates : 20 Hz

Supported Signals : BeiDou B1I, B2I, B3I, B1C, B2a, B2b, GLONASS L1, L2, L3, GPS L1C/A, L2C, L1C, L2P (Y), L5, Galileo E1, E5b, E5a, E6, QZSS L1, L2, L5, SBAS L1C/A

Description

PPK Upgrade Kit for DJI Phantom 4 Advanced / Pro / Pro v2.0

More details

Features

Performing high-precision aerial survey without GCPs
Works in PPK mode without access to the Internet
Getting fixed solutions at a distance of up to 25 km from base stations
Writes data to a memory card without having to connect to the on-board GNSS receiver via Wi-Fi
Automatic conversion of high-precision coordinates of photo centers to the local coordinate system

In the box

On-board multi-system L1/L2 GNSS receiver TOPODRONE PPK with built-in IMU - 1 pcs
Removable GNSS L1/L2 antenna - 1 pcs
The housing of GNSS receiver for Upgrade Kit installation to DJI Phantom 4 Advanced / Pro / Pro v2.0 - 1 pcs
Cable for connecting the GNSS receiver to the drone's mainboard - 1 pcs
16Gb memory card for recording GNSS data - 1 pcs
GNSS Data Processing Software TOPOSETTER 2.0 Pro, Perpetual License, 1-Year Support - 1 pcs
Manuals and video tutorials

Common

Country of origin

Switzerland

Year of release

2019

Warranty

12 months

GNSS Equipment

GNSS channels number

1408

Update Rates

20 Hz

Supported Signals

BeiDou B1I, B2I, B3I, B1C, B2a, B2b, GLONASS L1, L2, L3, GPS L1C/A, L2C, L1C, L2P (Y), L5, Galileo E1, E5b, E5a, E6, QZSS L1, L2, L5, SBAS L1C/A
